Strophe简介与Openfire配置
Strophe.js是为XMPP写的一个js类库。因为http协议本身不能实现持久连接，所以strophe利用BOSH模拟实现持久连接。
官方文档：
http://strophe.im/strophejs/doc/1.2.15/files/strophe-js.html
https://stackoverflow.com/questions/17311901/strophe-js-giving-authfail-status-always
Strophe操作相关插件：
https://github.com/ggozad/strophe.plugins/
https://github.com/gm19900510/strophejs-plugins
原文链接： https://www.cnblogs.com/gmhappy/p/9472406.html
连接状态常量发起一个链接后，会返回一个连接状态
Status.ERROR 错误 Status.CONNECTING 正在创建连接 Status.CONNFAIL 连接创建失败 Status.AUTHENTICATING 正在验证 Status.AUTHFAIL 验证失败 Status.CONNECTED 连接创建成功 Status.DISCONNECTED 连接已关闭 Status.DISCONNECTING 连接正在关闭XMPP服务器通常会实现BOSH扩展，下面是Openfire和Tigase的BOSH默认URL：
Openfire：http://host:7070/http-bind
Tigase：http://host:5280
在使用Strophe.js的时候，需要使用对应的HTTP地址才能连接上XMPP服务器。

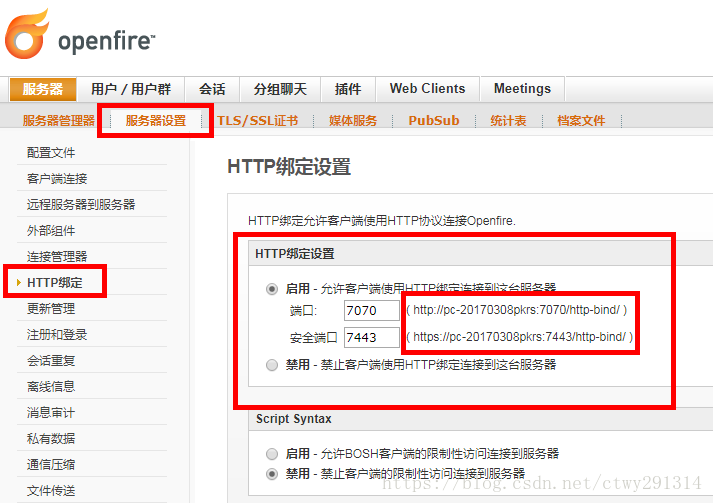

如果使用Opnefire，还需要在管理后台配置一下：

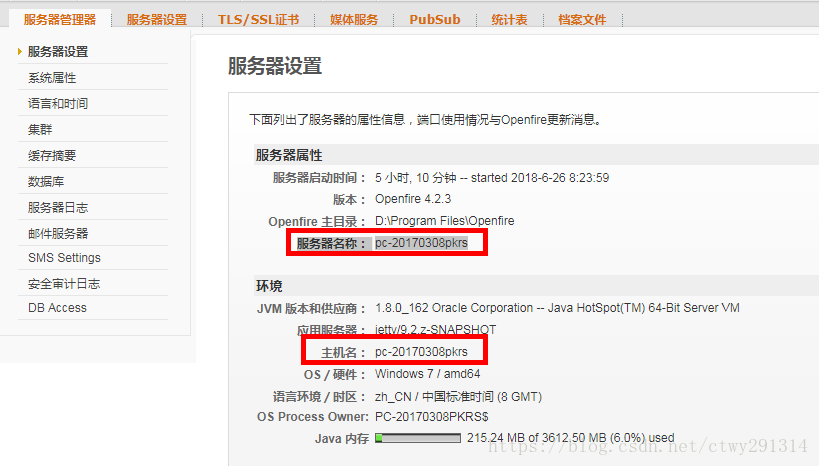

注意图中的pc-20170308pkrs是下图的服务器名称
XMPP协议简介：
XMPP服务器和客户端之间，是通过XML节（XML Stanza）来进行通讯。其中有三种非常重要的XML Stanza类型：<message>、<presence>、<iq>。<message>：
聊天消息的发送和接收就是通过message节来实现。例如xxg1@host发送一条信息"你好"给xxg2@host，xxg1@host客户端会将下面的这段XML发送到XMPP服务器，服务器再推送给xxg2@host客户端。其中<message>的from属性是发送者，to属性是接收者，<body>子元素的内容就是聊天信息。
<message from="a@pc-20170308pkrs" to="b@pc-20170308pkrs" type="chat"> <body>你好</body> </message>
<presence>：
可用于表明用户的状态，例如用户状态改变成“Do not disturb”（“请勿打扰”），会向服务器发送：<presence from="xxg@host"> <status>Do not disturb</status> <priority>0</priority> <show>dnd</show> </presence>
<iq>：
iq即Info/Query，采用“请求-响应”机制，类似于HTTP的机制。下面的例子是客户端通过<iq>请求获取联系人，XMPP服务器将结果返回：
客户端请求获取联系人：<iq from='a@pc-20170308pkrs' id='bv1bs71f' type='get'> <query xmlns='jabber:iq:roster'/> </iq>服务器结果返回：
<iq to='a@pc-20170308pkrs' id='bv1bs71f' type='result'> <query xmlns='jabber:iq:roster'> <item jid='b@pc-20170308pkrs'/> <item jid='c@pc-20170308pkrs'/> </query> </iq>

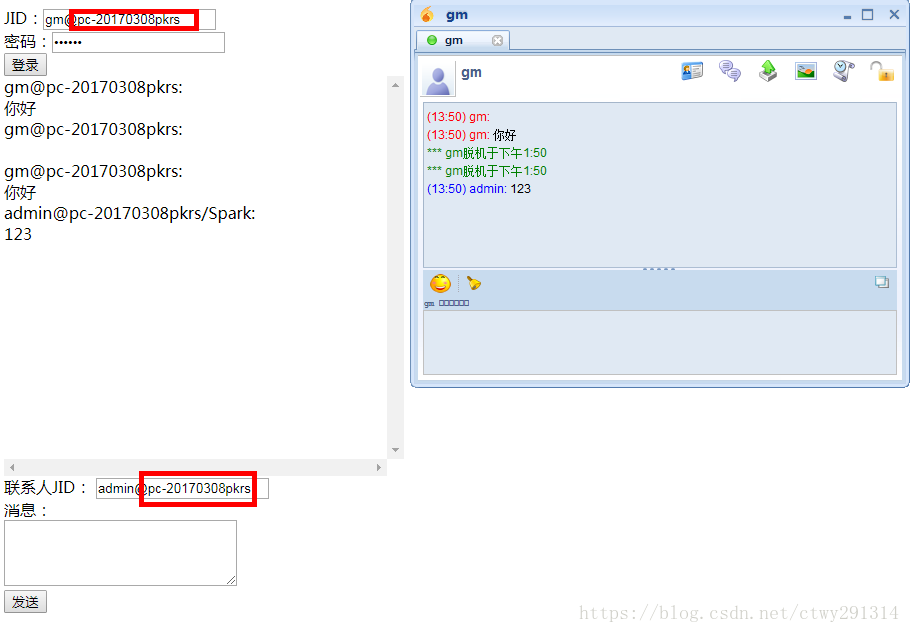

构建WebIM
新建echobot.html
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"><html xmlns="http://www.w3.org/1999/xhtml"><head> <title>Strophe.js Echobot Example</title> <script type='text/javascript' src='jquery-1.9.1.min.js'></script> <script type='text/javascript' src='strophe.min.js'></script> <script type='text/javascript' src='echobot.js'></script></head><body> JID：<input type="text" id="input-jid" value="gm@pc-20170308pkrs"> <br> 密码：<input type="password" id="input-pwd"> <br> <button id="btn-login">登录</button> <div id="msg" style="height: 400px; width: 400px; overflow: scroll;"></div> 联系人JID： <input type="text" id="input-contacts"> <br> 消息： <br> <textarea id="input-msg" cols="30" rows="4"></textarea> <br> <button id="btn-send">发送</button></body></html>
新建echobot.js
var BOSH_SERVICE = 'http://pc-20170308pkrs:7070/http-bind/';
// XMPP连接
var connection = null;
// 当前状态是否连接
var connected = false;
// 当前登录的JID
var jid = "";
// 连接状态改变的事件
function onConnect(status) {
console.log('status: ' + status)
if (status == Strophe.Status.CONNFAIL) {
alert("连接失败！");
} else if (status == Strophe.Status.AUTHFAIL) {
alert("登录失败！");
} else if (status == Strophe.Status.DISCONNECTED) {
alert("连接断开！");
connected = false;
} else if (status == Strophe.Status.CONNECTED) {
alert("连接成功，可以开始聊天了！"); console.log('pubsub',connection)
connected = true;
// 当接收到<message>节，调用onMessage回调函数
connection.addHandler(onMessage, null, null, null, null, null);
// 首先要发送一个<presence>给服务器（initial presence）
connection.send($pres().tree()); //获取订阅的主题信息 connection.pubsub.getSubscriptions(onMessage,5000); }
}
// 接收到<message>function onMessage(msg) { console.log('--- msg ---', msg);
// 解析出<message>的from、type属性，以及body子元素
var from = msg.getAttribute('from');
var type = msg.getAttribute('type');
var elems = msg.getElementsByTagName('body');
if (type == "chat" && elems.length > 0) {
var body = elems[0];
$("#msg").append(from + ":<br>" + Strophe.getText(body) + "<br>")
}
return true;
}
$(document).ready(function() {
// 通过BOSH连接XMPP服务器
$('#btn-login').click(function() {
if(!connected) {
console.log('jid: ' + $("#input-jid").val());
console.log('pwd: ' + $("#input-pwd").val());
connection = new Strophe.Connection(BOSH_SERVICE);
connection.connect($("#input-jid").val(), $("#input-pwd").val(), onConnect);
jid = $("#input-jid").val();
}
});
// 发送消息
$("#btn-send").click(function() {
if(connected) {
if($("#input-contacts").val() == '') {
alert("请输入联系人！");
return;
}
// 创建一个<message>元素并发送
var msg = $msg({
to: $("#input-contacts").val(),
from: jid,
type: 'chat'
}).c("body", null, $("#input-msg").val());
connection.send(msg.tree());
$("#msg").append(jid + ":<br>" + $("#input-msg").val() + "<br>");
$("#input-msg").val('');
} else {
alert("请先登录！");
}
});
});strophe.plugins插件使用（connection+“插件名称”+ “对应方法”）
connection.pubsub.getSubscriptions(onMessage,5000);
新建strophe.pubsub.js
/*
This program is distributed under the terms of the MIT license.
Please see the LICENSE file for details.
Copyright 2008, Stanziq Inc.
Overhauled in October 2009 by Liam Breck [How does this affect copyright?]
*/
/** File: strophe.pubsub.js
* A Strophe plugin for XMPP Publish-Subscribe.
*
* Provides Strophe.Connection.pubsub object,
* parially implementing XEP 0060.
*
* Strophe.Builder.prototype methods should probably move to strophe.js
*/
/** Function: Strophe.Builder.form
* Add an options form child element.
*
* Does not change the current element.
*
* Parameters:
* (String) ns - form namespace.
* (Object) options - form properties.
*
* Returns:
* The Strophe.Builder object.
*/
Strophe.Builder.prototype.form = function (ns, options)
{
var aX = this.node.appendChild(Strophe.xmlElement('x', {"xmlns": "jabber:x:data", "type": "submit"}));
aX.appendChild(Strophe.xmlElement('field', {"var":"FORM_TYPE", "type": "hidden"}))
.appendChild(Strophe.xmlElement('value'))
.appendChild(Strophe.xmlTextNode(ns));
for (var i in options) {
aX.appendChild(Strophe.xmlElement('field', {"var": i}))
.appendChild(Strophe.xmlElement('value'))
.appendChild(Strophe.xmlTextNode(options[i]));
}
return this;
};
/** Function: Strophe.Builder.list
* Add many child elements.
*
* Does not change the current element.
*
* Parameters:
* (String) tag - tag name for children.
* (Array) array - list of objects with format:
* { attrs: { [string]:[string], ... }, // attributes of each tag element
* data: [string | XML_element] } // contents of each tag element
*
* Returns:
* The Strophe.Builder object.
*/
Strophe.Builder.prototype.list = function (tag, array)
{
for (var i=0; i < array.length; ++i) {
this.c(tag, array[i].attrs)
this.node.appendChild(array[i].data.cloneNode ? array[i].data.cloneNode(true) : Strophe.xmlTextNode(array[i].data));
this.up();
}
return this;
};
Strophe.Builder.prototype.children = function (object) {
var key, value;
for (key in object) {
if (!object.hasOwnProperty(key))
continue;
value = object[key];
if (Array.isArray(value)) {
this.list(key, value);
} else if (typeof value === 'string') {
this.c(key, {}, value);
} else if (typeof value === 'number') {
this.c(key, {}, ""+value);
} else if (typeof value === 'object') {
this.c(key).children(value).up();
} else {
this.c(key).up();
}
}
return this;
};
// TODO Ideas Adding possible conf values?
/* Extend Strophe.Connection to have member 'pubsub'.
*/Strophe.addConnectionPlugin('pubsub', {
/*Extend connection object to have plugin name 'pubsub'.*/ _connection: null, _autoService: true, service: null, jid: null,
//The plugin must have the init function.
init: function(conn) { this._connection = conn;
/* Function used to setup plugin.
*/
/* extend name space
* NS.PUBSUB - XMPP Publish Subscribe namespace
* from XEP 60.
*
* NS.PUBSUB_SUBSCRIBE_OPTIONS - XMPP pubsub
* options namespace from XEP 60.
*/ Strophe.addNamespace('PUBSUB',"http://jabber.org/protocol/pubsub"); Strophe.addNamespace('PUBSUB_SUBSCRIBE_OPTIONS', Strophe.NS.PUBSUB+"#subscribe_options"); Strophe.addNamespace('PUBSUB_ERRORS',Strophe.NS.PUBSUB+"#errors"); Strophe.addNamespace('PUBSUB_EVENT',Strophe.NS.PUBSUB+"#event"); Strophe.addNamespace('PUBSUB_OWNER',Strophe.NS.PUBSUB+"#owner"); Strophe.addNamespace('PUBSUB_AUTO_CREATE', Strophe.NS.PUBSUB+"#auto-create"); Strophe.addNamespace('PUBSUB_PUBLISH_OPTIONS', Strophe.NS.PUBSUB+"#publish-options"); Strophe.addNamespace('PUBSUB_NODE_CONFIG', Strophe.NS.PUBSUB+"#node_config"); Strophe.addNamespace('PUBSUB_CREATE_AND_CONFIGURE', Strophe.NS.PUBSUB+"#create-and-configure"); Strophe.addNamespace('PUBSUB_SUBSCRIBE_AUTHORIZATION', Strophe.NS.PUBSUB+"#subscribe_authorization"); Strophe.addNamespace('PUBSUB_GET_PENDING', Strophe.NS.PUBSUB+"#get-pending"); Strophe.addNamespace('PUBSUB_MANAGE_SUBSCRIPTIONS', Strophe.NS.PUBSUB+"#manage-subscriptions"); Strophe.addNamespace('PUBSUB_META_DATA', Strophe.NS.PUBSUB+"#meta-data"); Strophe.addNamespace('ATOM', "http://www.w3.org/2005/Atom"); if (conn.disco) conn.disco.addFeature(Strophe.NS.PUBSUB);
},
// Called by Strophe on connection event
statusChanged: function (status, condition) { var that = this._connection;
if (this._autoService && status === Strophe.Status.CONNECTED) { this.service = 'pubsub.'+Strophe.getDomainFromJid(that.jid); this.jid = that.jid;
}
},
/***Function
Parameters:
(String) jid - The node owner's jid.
(String) service - The name of the pubsub service.
*/ connect: function (jid, service) { var that = this._connection;
if (service === undefined) { service = jid;
jid = undefined;
} this.jid = jid || that.jid; this.service = service || null; this._autoService = false;
},
/***Function
Create a pubsub node on the given service with the given node
name.
Parameters:
(String) node - The name of the pubsub node.
(Dictionary) options - The configuration options for the node.
(Function) call_back - Used to determine if node
creation was sucessful.
Returns:
Iq id used to send subscription.
*/ createNode: function(node,options, call_back) { var that = this._connection;
var iqid = that.getUniqueId("pubsubcreatenode"); var iq = $iq({from:this.jid, to:this.service, type:'set', id:iqid}) .c('pubsub', {xmlns:Strophe.NS.PUBSUB}) .c('create',{node:node}); if(options) { iq.up().c('configure').form(Strophe.NS.PUBSUB_NODE_CONFIG, options);
} that.addHandler(call_back, null, 'iq', null, iqid, null); that.send(iq.tree()); return iqid;
},
/** Function: deleteNode
* Delete a pubsub node.
*
* Parameters:
* (String) node - The name of the pubsub node.
* (Function) call_back - Called on server response.
*
* Returns:
* Iq id
*/ deleteNode: function(node, call_back) { var that = this._connection;
var iqid = that.getUniqueId("pubsubdeletenode"); var iq = $iq({from:this.jid, to:this.service, type:'set', id:iqid}) .c('pubsub', {xmlns:Strophe.NS.PUBSUB_OWNER}) .c('delete', {node:node}); that.addHandler(call_back, null, 'iq', null, iqid, null); that.send(iq.tree()); return iqid;
},
/** Function
*
* Get all nodes that currently exist.
*
* Parameters:
* (Function) success - Used to determine if node creation was sucessful.
* (Function) error - Used to determine if node
* creation had errors.
*/ discoverNodes: function(success, error, timeout) {
//ask for all nodes
var iq = $iq({from:this.jid, to:this.service, type:'get'}) .c('query', { xmlns:Strophe.NS.DISCO_ITEMS }); return this._connection.sendIQ(iq.tree(),success, error, timeout);
},
/** Function: getConfig
* Get node configuration form.
*
* Parameters:
* (String) node - The name of the pubsub node.
* (Function) call_back - Receives config form.
*
* Returns:
* Iq id
*/ getConfig: function (node, call_back) { var that = this._connection;
var iqid = that.getUniqueId("pubsubconfigurenode"); var iq = $iq({from:this.jid, to:this.service, type:'get', id:iqid}) .c('pubsub', {xmlns:Strophe.NS.PUBSUB_OWNER}) .c('configure', {node:node}); that.addHandler(call_back, null, 'iq', null, iqid, null); that.send(iq.tree()); return iqid;
},
/**
* Parameters:
* (Function) call_back - Receives subscriptions.
*
* http://xmpp.org/extensions/tmp/xep-0060-1.13.html
* 8.3 Request Default Node Configuration Options
*
* Returns:
* Iq id
*/ getDefaultNodeConfig: function(call_back) { var that = this._connection;
var iqid = that.getUniqueId("pubsubdefaultnodeconfig"); var iq = $iq({from:this.jid, to:this.service, type:'get', id:iqid}) .c('pubsub', {'xmlns':Strophe.NS.PUBSUB_OWNER}) .c('default'); that.addHandler(call_back, null, 'iq', null, iqid, null); that.send(iq.tree()); return iqid;
},
/***Function
Subscribe to a node in order to receive event items.
Parameters:
(String) node - The name of the pubsub node.
(Array) options - The configuration options for the node.
(Function) event_cb - Used to recieve subscription events.
(Function) success - callback function for successful node creation.
(Function) error - error callback function.
(Boolean) barejid - use barejid creation was sucessful.
Returns:
Iq id used to send subscription.
*/ subscribe: function(node, options, event_cb, success, error, barejid) { var that = this._connection;
var iqid = that.getUniqueId("subscribenode"); var jid = this.jid;
if(barejid) jid = Strophe.getBareJidFromJid(jid);
var iq = $iq({from:this.jid, to:this.service, type:'set', id:iqid}) .c('pubsub', { xmlns:Strophe.NS.PUBSUB }) .c('subscribe', {'node':node, 'jid':jid}); if(options) { iq.up().c('options').form(Strophe.NS.PUBSUB_SUBSCRIBE_OPTIONS, options);
}
//add the event handler to receive items
that.addHandler(event_cb, null, 'message', null, null, null); that.sendIQ(iq.tree(), success, error); return iqid;
},
/***Function
Unsubscribe from a node.
Parameters:
(String) node - The name of the pubsub node.
(Function) success - callback function for successful node creation.
(Function) error - error callback function.
*/ unsubscribe: function(node, jid, subid, success, error) { var that = this._connection;
var iqid = that.getUniqueId("pubsubunsubscribenode"); var iq = $iq({from:this.jid, to:this.service, type:'set', id:iqid}) .c('pubsub', { xmlns:Strophe.NS.PUBSUB }) .c('unsubscribe', {'node':node, 'jid':jid}); if (subid) iq.attrs({subid:subid}); that.sendIQ(iq.tree(), success, error); return iqid;
},
/***Function
Publish and item to the given pubsub node.
Parameters:
(String) node - The name of the pubsub node.
(Array) items - The list of items to be published.
(Function) call_back - Used to determine if node
creation was sucessful.
*/ publish: function(node, items, call_back) { var that = this._connection;
var iqid = that.getUniqueId("pubsubpublishnode"); var iq = $iq({from:this.jid, to:this.service, type:'set', id:iqid}) .c('pubsub', { xmlns:Strophe.NS.PUBSUB }) .c('publish', { node:node, jid:this.jid }) .list('item', items); that.addHandler(call_back, null, 'iq', null, iqid, null); that.send(iq.tree()); return iqid;
},
/*Function: items
Used to retrieve the persistent items from the pubsub node.
*/ items: function(node, success, error, timeout) {
//ask for all items
var iq = $iq({from:this.jid, to:this.service, type:'get'}) .c('pubsub', { xmlns:Strophe.NS.PUBSUB }) .c('items', {node:node}); return this._connection.sendIQ(iq.tree(), success, error, timeout);
},
/** Function: getSubscriptions
* Get subscriptions of a JID.
*
* Parameters:
* (Function) call_back - Receives subscriptions.
*
* http://xmpp.org/extensions/tmp/xep-0060-1.13.html
* 5.6 Retrieve Subscriptions
*
* Returns:
* Iq id
*/ getSubscriptions: function(call_back, timeout) { var that = this._connection;
var iqid = that.getUniqueId("pubsubsubscriptions"); var iq = $iq({from:this.jid, to:this.service, type:'get', id:iqid}) .c('pubsub', {'xmlns':Strophe.NS.PUBSUB}) .c('subscriptions'); that.addHandler(call_back, null, 'iq', null, iqid, null); that.send(iq.tree()); console.log('-- iq pubsub --',iq.tree()) return iqid;
},
/** Function: getNodeSubscriptions
* Get node subscriptions of a JID.
*
* Parameters:
* (Function) call_back - Receives subscriptions.
*
* http://xmpp.org/extensions/tmp/xep-0060-1.13.html
* 5.6 Retrieve Subscriptions
*
* Returns:
* Iq id
*/ getNodeSubscriptions: function(node, call_back) { var that = this._connection;
var iqid = that.getUniqueId("pubsubsubscriptions"); var iq = $iq({from:this.jid, to:this.service, type:'get', id:iqid}) .c('pubsub', {'xmlns':Strophe.NS.PUBSUB_OWNER}) .c('subscriptions', {'node':node}); that.addHandler(call_back, null, 'iq', null, iqid, null); that.send(iq.tree()); return iqid;
},
/** Function: getSubOptions
* Get subscription options form.
*
* Parameters:
* (String) node - The name of the pubsub node.
* (String) subid - The subscription id (optional).
* (Function) call_back - Receives options form.
*
* Returns:
* Iq id
*/ getSubOptions: function(node, subid, call_back) { var that = this._connection;
var iqid = that.getUniqueId("pubsubsuboptions"); var iq = $iq({from:this.jid, to:this.service, type:'get', id:iqid}) .c('pubsub', {xmlns:Strophe.NS.PUBSUB}) .c('options', {node:node, jid:this.jid}); if (subid) iq.attrs({subid:subid}); that.addHandler(call_back, null, 'iq', null, iqid, null); that.send(iq.tree()); return iqid;
},
/**
* Parameters:
* (String) node - The name of the pubsub node.
* (Function) call_back - Receives subscriptions.
*
* http://xmpp.org/extensions/tmp/xep-0060-1.13.html
* 8.9 Manage Affiliations - 8.9.1.1 Request
*
* Returns:
* Iq id
*/ getAffiliations: function(node, call_back) { var that = this._connection;
var iqid = that.getUniqueId("pubsubaffiliations"); if (typeof node === 'function') { call_back = node;
node = undefined;
} var attrs = {}, xmlns = {'xmlns':Strophe.NS.PUBSUB}; if (node) { attrs.node = node;
xmlns = {'xmlns':Strophe.NS.PUBSUB_OWNER};
} var iq = $iq({from:this.jid, to:this.service, type:'get', id:iqid}) .c('pubsub', xmlns).c('affiliations', attrs); that.addHandler(call_back, null, 'iq', null, iqid, null); that.send(iq.tree()); return iqid;
},
/**
* Parameters:
* (String) node - The name of the pubsub node.
* (Function) call_back - Receives subscriptions.
*
* http://xmpp.org/extensions/tmp/xep-0060-1.13.html
* 8.9.2 Modify Affiliation - 8.9.2.1 Request
*
* Returns:
* Iq id
*/ setAffiliation: function(node, jid, affiliation, call_back) { var that = this._connection;
var iqid = thiat.getUniqueId("pubsubaffiliations"); var iq = $iq({from:this.jid, to:this.service, type:'set', id:iqid}) .c('pubsub', {'xmlns':Strophe.NS.PUBSUB_OWNER}) .c('affiliations', {'node':node}) .c('affiliation', {'jid':jid, 'affiliation':affiliation}); that.addHandler(call_back, null, 'iq', null, iqid, null); that.send(iq.tree()); return iqid;
},
/** Function: publishAtom
*/ publishAtom: function(node, atoms, call_back) { if (!Array.isArray(atoms)) atoms = [atoms];
var i, atom, entries = [];
for (i = 0; i < atoms.length; i++) { atom = atoms[i];
atom.updated = atom.updated || (new Date()).toISOString(); if (atom.published && atom.published.toISOString) atom.published = atom.published.toISOString();
entries.push({ data: $build("entry", { xmlns:Strophe.NS.ATOM }) .children(atom).tree(), attrs:(atom.id ? { id:atom.id } : {}),
});
} return this.publish(node, entries, call_back);
},
});效果：
